Professional Long-Lasting Passthrough Dishwasher Premium 500mm basket 48 baskets/hour Built-in water softener Break tank Drain p

CS25ADX10MBWS-DX
£2,583.89
VAT excluded



Professional Long-Lasting Passthrough Dishwasher Premium 500mm basket 48 baskets/hour Built-in water softener Break tank Drain p

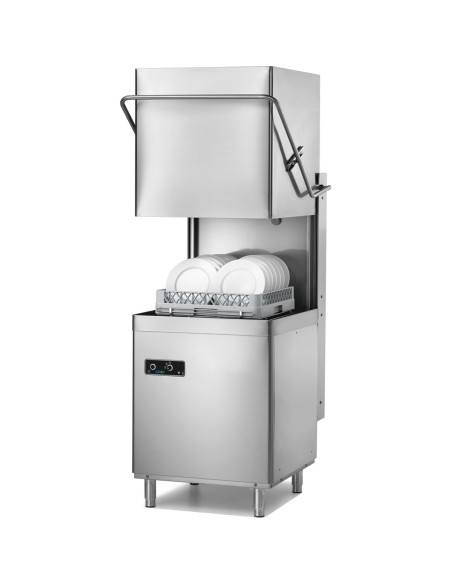

This premium hood type dishwashers offers outstanding professional performance and exceptional economical operation for restaurants, hotels and other catering businesses. This item includes a break tank as standard. The break tank is a separate reservoir with an air overflow that acts as a barrier between any contaminated water and your fresh water supply. The break tank means that no contaminated water, food debris or bacteria can ever enter your freshwater supply, ensuring maximum hygiene for clean glassware and crockery. A break tank is a requirement for all high-risk businesses under the UK Water Board regulations. That typically includes Nurseries, all Schools, Hospitals, and Care Homes.

  • Single-skinned body and double skin doors.
  • Made in Italy
  • Power supply: 230V / 1N / 50Hz
  • With Built-in water softener
  • With break tank

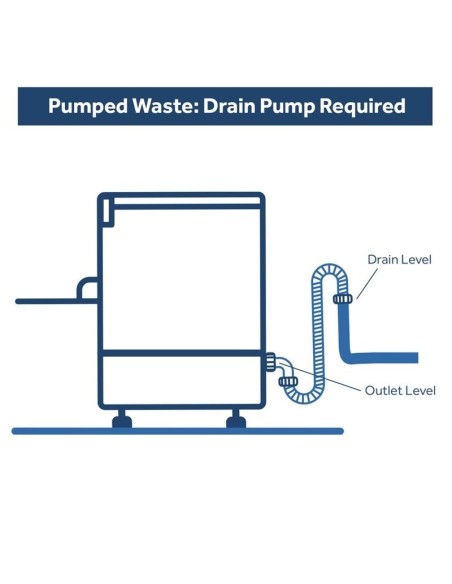

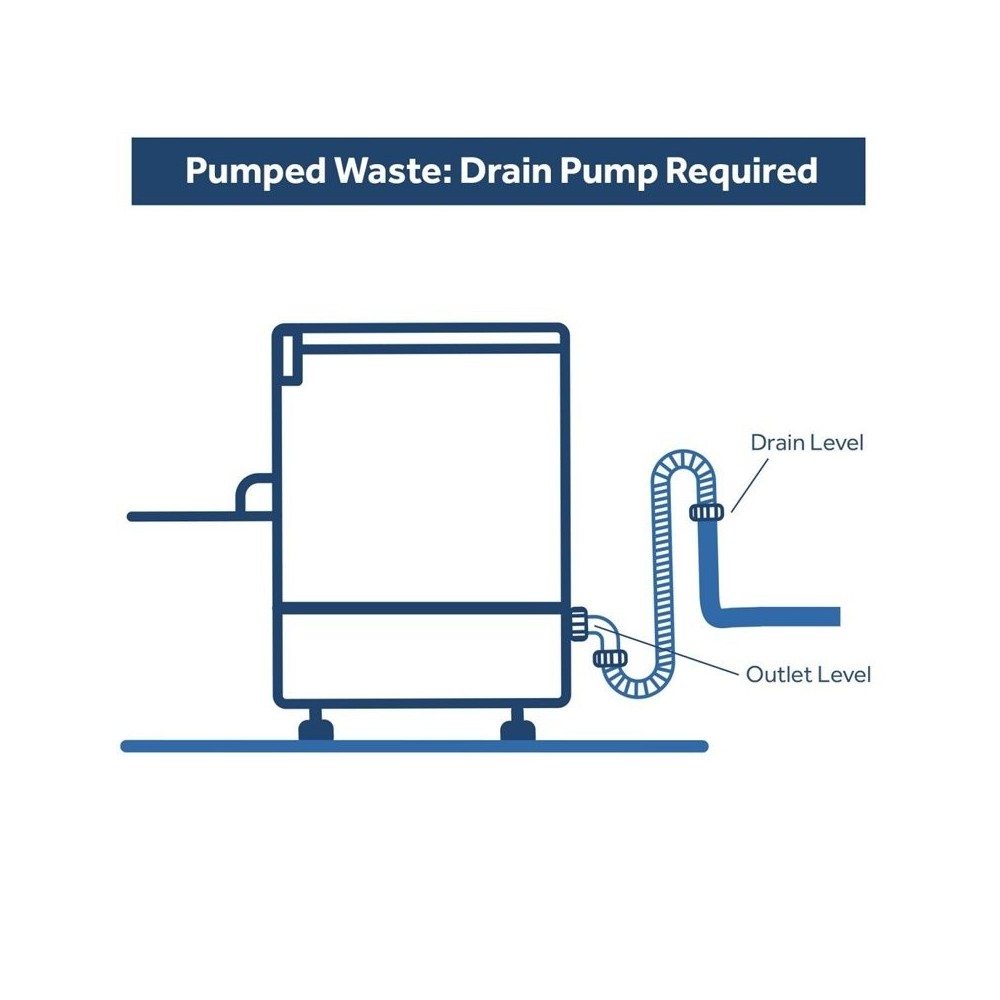

  • With drain pump
  • With detergent dosing pump
  • Easy-clean-filter system.
  • Two stainless-steel wash arms and two rinse arms of composite material, independent and rotary, removable without tools.
  • Wash tank inclined to filters.
  • Self-draining inclined wash pump.
  • Tank and hood made of stainless-steel AISI 304.
  • Adjustable rinse aid dosing unit.
  • Auto-start hood.
  • Electromechanical control panel.
  • Washing Cycle 1: 75 sec (48 baskets/h)
  • Washing Cycle 2: 120 sec (30 baskets/h)
  • Washing Cycle 3: 180 sec (20 baskets/h)
  • Basket size: 500 x 500 mm
  • Wash pump power: 1.1 kW
  • Wash pump capacity: 503 litres/min
  • Element power (tank): 3 kW
  • Element power (boiler): 6 kW
  • Water supply temperature: +55°C
  • Water supply pressure: 200 - 400 kPa
  • Water supply hardness max: min. 7 max. 12°f
  • Washing temperature: +55°C
  • Rinsing temperature: +85°C
  • Capacity tank: 30 litres
  • Capacity boiler: 7 litres
  • Water consumption per cycle: 2.8 litres
  • Sound emission: 69 dB(A)
  • Total power: 7.1 kW
Included accessories
  • Baskets: 1x18 plates rack, 1 universal basket, 1 cutlery rack
  • Hoses (1 for each): Water connection, Drain, Transparent rinsing product

  • Miscellaneous
  • Break tank
  • Yes
  • Capacity (boiler)
  • 7 litres
  • Capacity (tank)
  • 30 litres
  • Noise level
  • 69 dB(A)
  • Water pressure (inlet)
  • 200 - 400 kPa
  • Included
  • Baskets: 1x18 plates rack, 1 universal basket, 1 cutlery rack Hoses (1 of each): Water connection, Drain, Transparent rinsing
  • Dimensions / Weight
  • Width
  • 725mm
  • Depth
  • 885mm
  • Height
  • 1915mm
  • Basket Size
  • 500x500mm
  • Power supply
  • Power supply
  • 230V / 1 phase
  • Power
  • 7100W
  • Power (wash pump)
  • 1100W
  • Power (boiler)
  • 6000W
  • Power (tank)
  • 3000W
  • Temperature
  • Temperature (washing)
  • +55°C
  • Temperature (rinsing)
  • +85°C
  • Dishwashing
  • Capacity (wash pump)
  • 503 litres/min
  • Detergent dispenser
  • Yes
  • Rinsing
  • Drain pump
  • Yes
  • Water consumption (rinsing)
  • 2.8 litres
The Professional Long-Lasting Passthrough Dishwasher Premium 500mm basket 48 baskets/hour Built-in water softener Break tank Drain p is designed for professional catering environments where reliability and quality matter most.

Height
1915mm
Width
725mm
Basket Size
500x500mm
Break tank
Yes
Capacity (boiler)
7 litres
Capacity (tank)
30 litres
Capacity (wash pump)
503 litres/min
Depth
885mm
Detergent dispenser
Yes
Drain pump
Yes
Included
Baskets: 1x18 plates rack, 1 universal basket, 1 cutlery rack
Noise level
69 dB(A)
Power
7100W
Power (boiler)
6000W
Power (tank)
3000W
Power (wash pump)
1100W
Power supply
230V / 1 phase
Temperature (rinsing)
+85°C
Temperature (washing)
+55°C
Water consumption (rinsing)
2.8 litres
Water pressure (inlet)
200 - 400 kPa
